7ME6362-3TC33-0GA2-Z A02+F01+J50

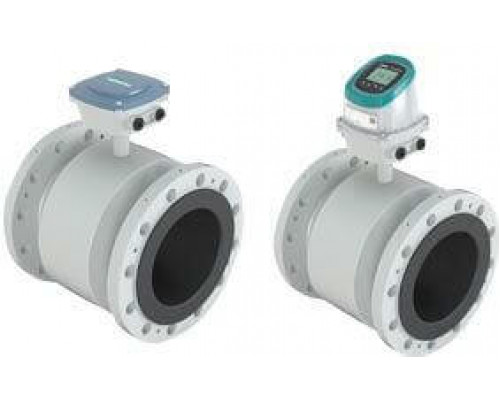

SITRANS FMS300 Magnetic flow sensor, flanged, diameter DN15…2200, 1/2"…88" for measuring the volume flowrate of liquids with an electr. conductivity >5 µS/cm. Suitable for applications in the water & wastewater, mining, power generation, O&G and chemical industry. Transmitter SITRANS FMT020 DN 100, 4 inch EN 1092-1 PN 16 flanges, Standard face-to-face length for sensor (1.25 x DN, DN 700 / 28" … DN 1200 / 48") Stainless st. AISI 304 flange with corrosion-resistant coating acc. to EN ISO 12944 class C4 PTFE liner Stainless steel AISI 316Ti / 1.4571 electrodes Polycarbonate housing, compact design . 12…42 V DC M20x1.5, Polyamide, grey cable glands (2 pcs.) HART with 4…20 mA output, active or passive Without grounding electrodes
